  • M.A. FORD DE2BM0800 DIA 8MM SH 0.3150 LOC 0.3937 OAL 2.5197 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

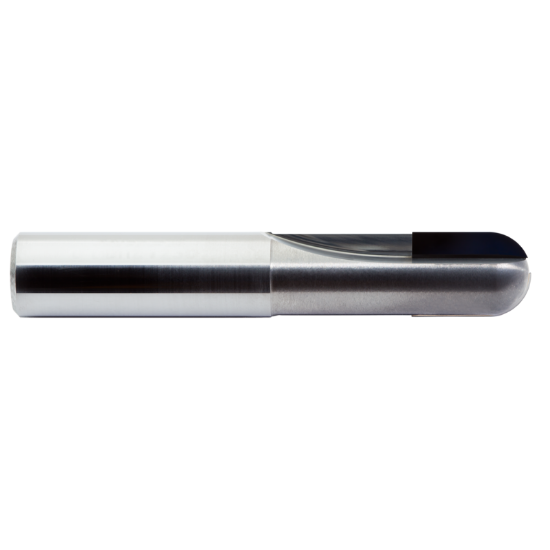

Picture of M.A. FORD DE2BM0800 DIA 8MM SH 0.3150 LOC 0.3937 OAL 2.5197 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

M.A. FORD DE2BM0800 DIA 8MM SH 0.3150 LOC 0.3937 OAL 2.5197 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF90130
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Copy Milling, Ball Milling, Ball Slot Milling, Profile Milling
Made In USA Yes
Package Size 1
Shipping State Iowa
Performance Rating High Performance
Dimensional Specifications
Cut Rating Graphite, Fiberglass
End Of Tool Shape Ball Nose
Cutter Style PCD Ball
Helix Angle 0°
Overall Len 2.5197 64.00MM
Length Of Cut 0.3937 10.00MM
Length Type Standard
Tool Material PCD
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3150 8.00MM
Cutter Dia 0.3150 8.00MM
Flutes/Inserts 2
Inch/Metric Metric
Dimension Description 0.315 x 0.315 x 0.394 x 2.520
Single/Double End Single End
Machine Side Connection Size 0.3150 8.00MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat PCD
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
