  • M.A. FORD DE2BM0600 DIA 6MM SH 0.2362 LOC 0.3937 OAL 2.5197 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

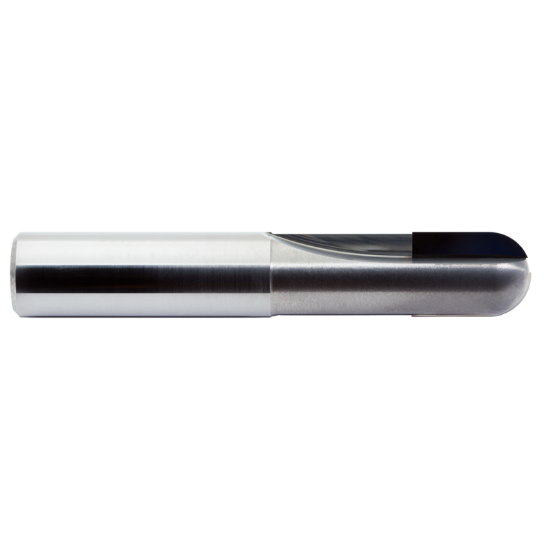

Picture of M.A. FORD DE2BM0600 DIA 6MM SH 0.2362 LOC 0.3937 OAL 2.5197 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

M.A. FORD DE2BM0600 DIA 6MM SH 0.2362 LOC 0.3937 OAL 2.5197 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF90129
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Profile Milling, Ball Milling, Ball Slot Milling, Side Milling, Copy Milling
Shipping State Iowa
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Tool Material PCD
Cutter Dia 0.2362 6.00MM
Single/Double End Single End
Dimension Description 0.236 x 0.236 x 0.394 x 2.520
Cut Rating Graphite, Fiberglass
End Of Tool Shape Ball Nose
Cutter Style PCD Ball
Helix Angle 0°
Flutes/Inserts 2
Inch/Metric Metric
Machine Side Connection Size 0.2362 6.00MM
Overall Len 2.5197 64.00MM
Length Of Cut 0.3937 10.00MM
Length Type Standard
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat PCD
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
