  • M.A. FORD DE2B7500 DIA 3/4 SH 0.7500 LOC 1.00 OAL 4.00 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

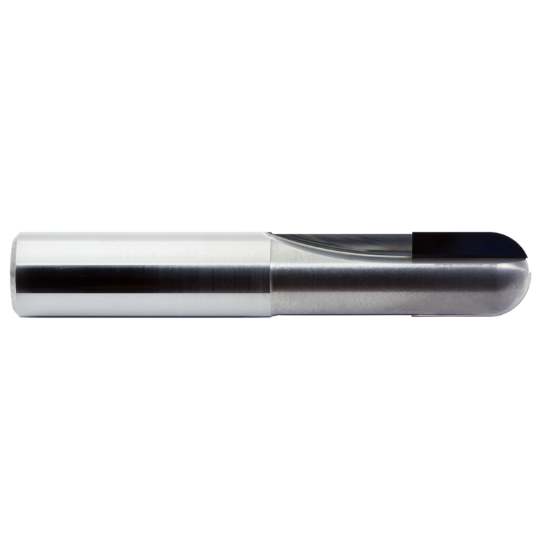

Picture of M.A. FORD DE2B7500 DIA 3/4 SH 0.7500 LOC 1.00 OAL 4.00 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

M.A. FORD DE2B7500 DIA 3/4 SH 0.7500 LOC 1.00 OAL 4.00 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF90125
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Copy Milling, Ball Slot Milling, Profile Milling, Ball Milling
Package Size 1
Performance Rating High Performance
Shipping State Iowa
Made In USA Yes
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
End Of Tool Shape Ball Nose
Cutter Style PCD Ball
Helix Angle 0°
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Dimension Description 0.750 x 0.750 x 1.000 x 4.000
Length Type Standard
Single/Double End Single End
Cut Rating Graphite, Fiberglass
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Tool Material PCD
Overall Len 4.0000 101.60MM
Length Of Cut 1.0000 25.40MM
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat PCD
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
