  • M.A. FORD DE2B6250 DIA 5/8 SH 0.6250 LOC 0.8750 OAL 3.50 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

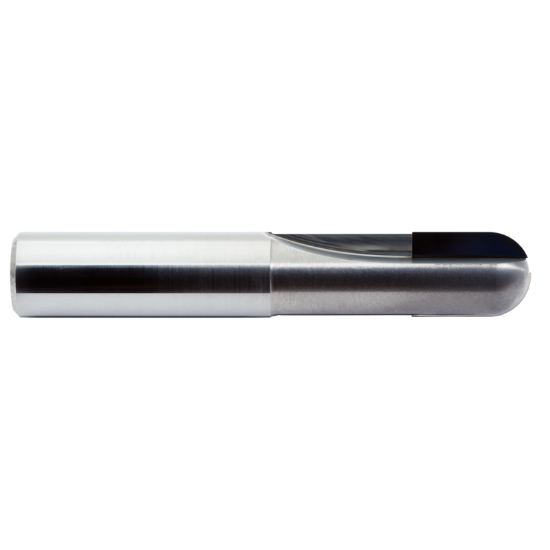

Picture of M.A. FORD DE2B6250 DIA 5/8 SH 0.6250 LOC 0.8750 OAL 3.50 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

M.A. FORD DE2B6250 DIA 5/8 SH 0.6250 LOC 0.8750 OAL 3.50 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF90124
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ball Milling, Profile Milling, Ball Slot Milling, Side Milling, Copy Milling
Shipping State Iowa
Made In USA Yes
Performance Rating High Performance
Dimensional Specifications
Flutes/Inserts 2
Length Of Cut 0.8750 22.23MM
Cut Rating Graphite, Fiberglass
Shank/Pilot Dia 0.6250 15.88MM - 5/8
End Of Tool Shape Ball Nose
Machine Side Connection Size 0.6250 15.88MM
Single/Double End Single End
Cutter Dia 0.6250 15.88MM - 5/8
Dimension Description 0.625 x 0.625 x 0.875 x 3.500
Tool Material PCD
Overall Len 3.5000 88.90MM
Cutter Style PCD Ball
Helix Angle 0°
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat PCD
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
