  • M.A. FORD DE2B5000 DIA 1/2 SH 0.50 LOC 0.6250 OAL 3.00 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

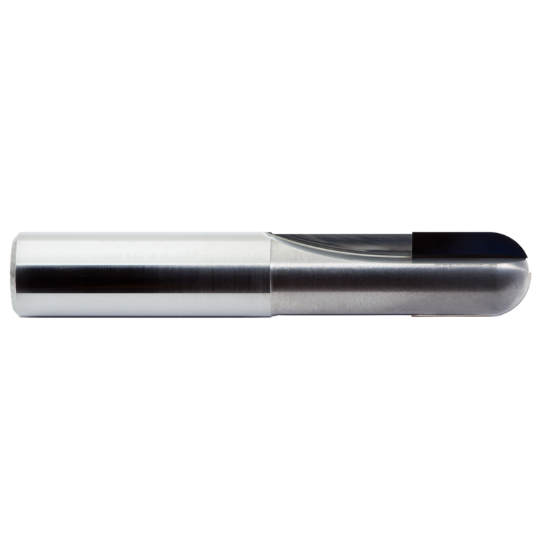

Picture of M.A. FORD DE2B5000 DIA 1/2 SH 0.50 LOC 0.6250 OAL 3.00 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

M.A. FORD DE2B5000 DIA 1/2 SH 0.50 LOC 0.6250 OAL 3.00 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF90123
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Iowa
Performance Rating High Performance
Application Copy Milling, Side Milling, Ball Slot Milling, Profile Milling, Ball Milling
Made In USA Yes
Package Size 1
Dimensional Specifications
Dimension Description 0.500 x 0.500 x 0.625 x 3.000
Cut Rating Graphite, Fiberglass
End Of Tool Shape Ball Nose
Helix Angle 0°
Flutes/Inserts 2
Length Of Cut 0.6250 15.88MM
Length Type Standard
Cutter Style PCD Ball
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Tool Material PCD
Overall Len 3.0000 76.20MM
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat PCD
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
