  • M.A. FORD DE2B3750 DIA 3/8 SH 0.3750 LOC 0.50 OAL 2.50 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

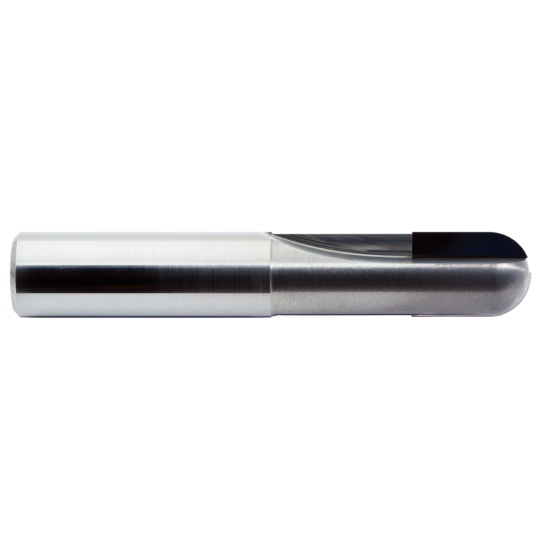

Picture of M.A. FORD DE2B3750 DIA 3/8 SH 0.3750 LOC 0.50 OAL 2.50 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

M.A. FORD DE2B3750 DIA 3/8 SH 0.3750 LOC 0.50 OAL 2.50 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF90122
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Ball Slot Milling, Profile Milling, Ball Milling, Side Milling
Package Size 1
Shipping State Iowa
Performance Rating High Performance
Made In USA Yes
Dimensional Specifications
Tool Material PCD
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cut Rating Graphite, Fiberglass
Cutter Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Ball Nose
Cutter Style PCD Ball
Helix Angle 0°
Single/Double End Single End
Overall Len 2.5000 63.50MM
Dimension Description 0.375 x 0.375 x 0.500 x 2.500
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Machine Side Connection Size 0.3750 9.53MM
Flutes/Inserts 2
Length Type Standard
Length Of Cut 0.5000 12.70MM
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat PCD
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
