  • M.A. FORD DE2B2500 DIA 1/4 SH 0.2500 LOC 0.3750 OAL 2.00 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

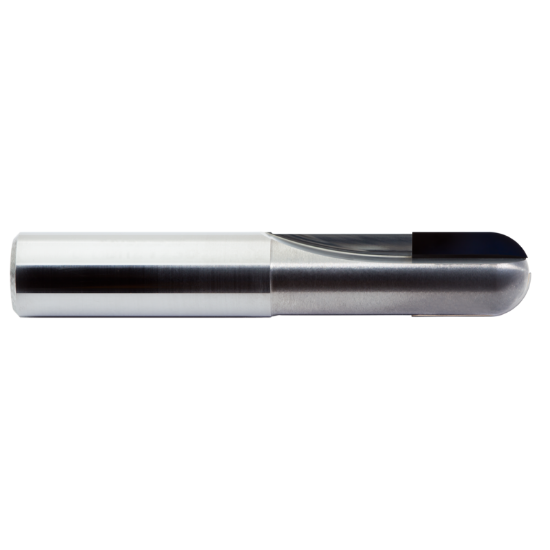

Picture of M.A. FORD DE2B2500 DIA 1/4 SH 0.2500 LOC 0.3750 OAL 2.00 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

M.A. FORD DE2B2500 DIA 1/4 SH 0.2500 LOC 0.3750 OAL 2.00 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF90121
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Slot Milling, Profile Milling, Copy Milling, Ball Milling, Side Milling
Performance Rating High Performance
Made In USA Yes
Shipping State Iowa
Package Size 1
Dimensional Specifications
Single/Double End Single End
Overall Len 2.0000 50.80MM
Length Type Standard
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Inch/Metric Inch
Tool Material PCD
Length Of Cut 0.3750 9.53MM
Dimension Description 0.250 x 0.250 x 0.375 x 2.000
Flutes/Inserts 2
Cut Rating Graphite, Fiberglass
Cutter Dia 0.2500 6.35MM - 1/4 - E
End Of Tool Shape Ball Nose
Cutter Style PCD Ball
Helix Angle 0°
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat PCD
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
