  • M.A. FORD DE1BM0500 DIA 5MM SH 0.1969 LOC 0.3150 OAL 1.9685 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

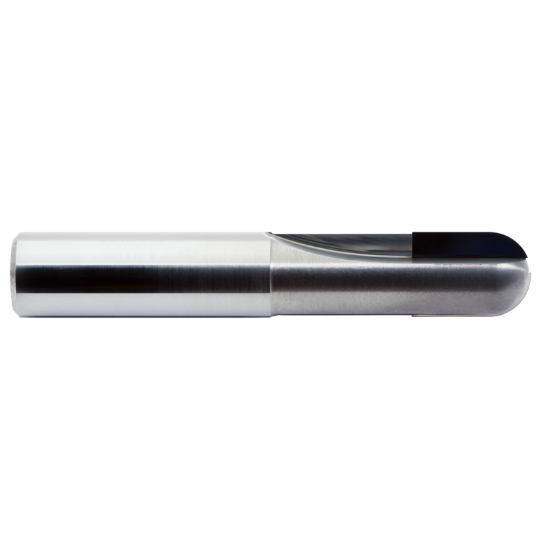

Picture of M.A. FORD DE1BM0500 DIA 5MM SH 0.1969 LOC 0.3150 OAL 1.9685 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

M.A. FORD DE1BM0500 DIA 5MM SH 0.1969 LOC 0.3150 OAL 1.9685 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF90128
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Ball Slot Milling, Side Milling, Copy Milling, Ball Milling
Package Size 1
Made In USA Yes
Shipping State Iowa
Performance Rating High Performance
Dimensional Specifications
Single/Double End Single End
Machine Side Connection Size 0.1969 5.00MM
Shank/Pilot Dia 0.1969 5.00MM
Length Of Cut 0.3150 8.00MM
Length Type Standard
Tool Material PCD
Overall Len 1.9685 50.00MM
Dimension Description 0.197 x 0.197 x 0.315 x 1.969
Cutter Dia 0.1968 5.00MM
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Fiberglass
End Of Tool Shape Ball Nose
Cutter Style PCD Ball
Helix Angle 0°
Flutes/Inserts 1
Inch/Metric Metric
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat PCD
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
