  • M.A. FORD DE1BM0300 DIA 3MM SH 0.1181 LOC 0.2362 OAL 1.4961 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

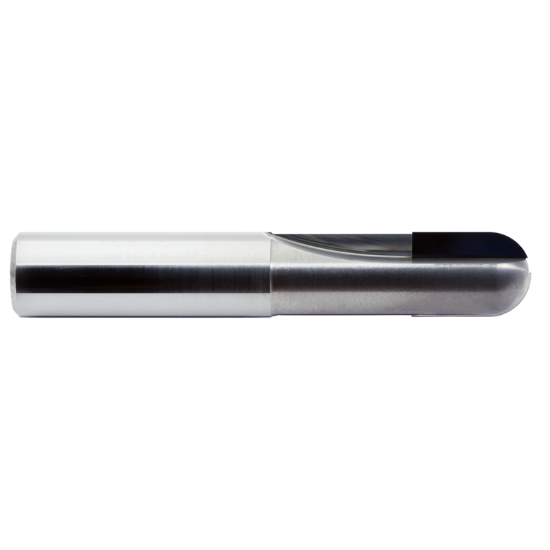

Picture of M.A. FORD DE1BM0300 DIA 3MM SH 0.1181 LOC 0.2362 OAL 1.4961 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

M.A. FORD DE1BM0300 DIA 3MM SH 0.1181 LOC 0.2362 OAL 1.4961 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF90126
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Ball Milling, Ball Slot Milling, Profile Milling, Side Milling, Copy Milling
Shipping State Iowa
Made In USA Yes
Package Size 1
Dimensional Specifications
Dimension Description 0.118 x 0.118 x 0.236 x 1.496
Cutter Dia 0.1181 3.00MM
Length Of Cut 0.2362 6.00MM
Overall Len 1.4961 38.00MM
Length Type Standard
Cut Rating Graphite, Fiberglass
End Of Tool Shape Ball Nose
Cutter Style PCD Ball
Helix Angle 0°
Machine Side Connection Size 0.1181 3.00MM
Flutes/Inserts 1
Inch/Metric Metric
Single/Double End Single End
Tool Material PCD
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1181 3.00MM
Cutting & Machining Properties
Cutting Edge Mat PCD
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
