  • M.A. FORD DE1B1875 DIA 3/16 SH 0.1875 LOC 0.3125 OAL 2.00 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

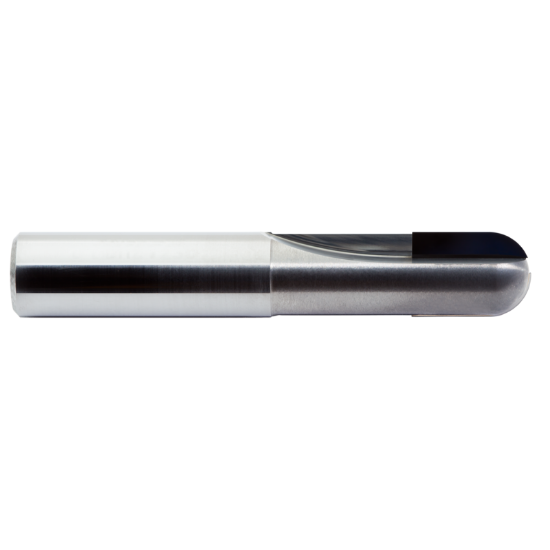

Picture of M.A. FORD DE1B1875 DIA 3/16 SH 0.1875 LOC 0.3125 OAL 2.00 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

M.A. FORD DE1B1875 DIA 3/16 SH 0.1875 LOC 0.3125 OAL 2.00 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF90120
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Package Size 1
Application Profile Milling, Ball Slot Milling, Copy Milling, Side Milling, Ball Milling
Made In USA Yes
Shipping State Iowa
Dimensional Specifications
Overall Len 2.0000 50.80MM
Length Type Standard
Cutter Style PCD Ball
Helix Angle 0°
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 1
Single/Double End Single End
Dimension Description 0.188 x 0.188 x 0.313 x 2.000
Cutter Dia 0.1875 4.76MM - 3/16
Machine Side Connection Type Cylindrical
Length Of Cut 0.3125 7.94MM
Inch/Metric Inch
Tool Material PCD
Cut Rating Graphite, Fiberglass
Machine Side Connection Size 0.1875 4.76MM
End Of Tool Shape Ball Nose
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat PCD
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
