  • M.A. FORD DE1B1250 DIA 1/8 SH 0.1250 LOC 0.2500 OAL 1.50 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

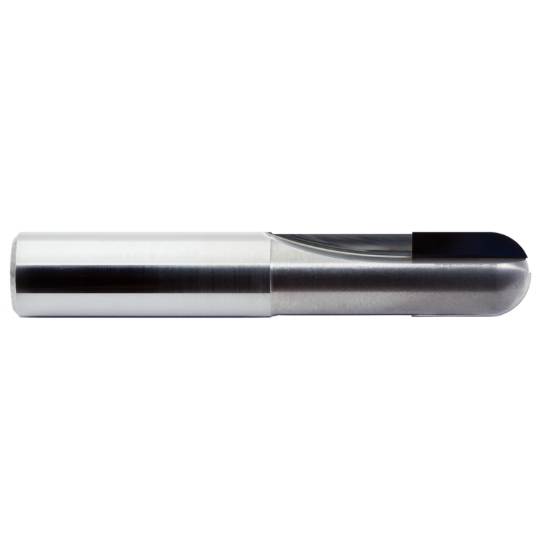

Picture of M.A. FORD DE1B1250 DIA 1/8 SH 0.1250 LOC 0.2500 OAL 1.50 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

M.A. FORD DE1B1250 DIA 1/8 SH 0.1250 LOC 0.2500 OAL 1.50 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF90119
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Ball Milling, Copy Milling, Side Milling, Ball Slot Milling, Profile Milling
Made In USA Yes
Package Size 1
Shipping State Iowa
Dimensional Specifications
Overall Len 1.5000 38.10MM
Length Of Cut 0.2500 6.35MM
Cutter Style PCD Ball
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutter Dia 0.1250 3.18MM - 1/8
Tool Material PCD
Flutes/Inserts 1
Length Type Standard
Single/Double End Single End
Dimension Description 0.125 x 0.125 x 0.250 x 1.500
Cut Rating Graphite, Fiberglass
End Of Tool Shape Ball Nose
Helix Angle 0°
Cutting & Machining Properties
Cutting Edge Mat PCD
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
Aerospace Yes
