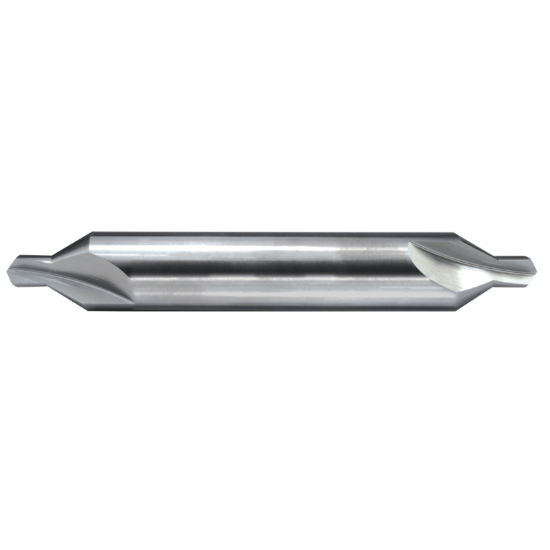

M.A. FORD 40512500 Center Drill Solid Carbide 60° 0.209 Dia 0.312 Shank 5.000 OAL 2 Flute Flute Length Carbide

ISO: 40512500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF40521
Delivery date: 3-5 days
$69.47

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Center Drilling
Shipping State Iowa
Made In USA Yes
Package Size 1
Dimensional Specifications
Cutter Dia 0.2090 5.31MM - #4
Cut Dia Min 0.2090 5.30MM - #4
Machine Side Connection Size 0.3125 7.94MM
Drill Length Type Stub
Included Angle 60°
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Overall Len 5.0000 127.00MM
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
