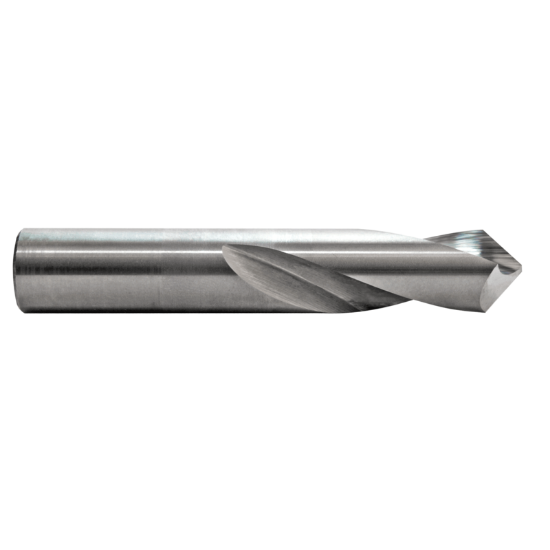

M.A. FORD 40437500 Spot Drill Solid Carbide 90° 0.375 Dia 0.375 Shank 2.500 OAL 2 Flute 1.000 Flute Length Carbide

ISO: 40437500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF40425
Delivery date: 3-5 days
$47.47

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Iowa
Package Size 1
Application Spot Drilling
Made In USA Yes
Dimensional Specifications
Included Angle 90°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cut Dia Min 0.3750 9.53MM - 3/8
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 2.5000 63.50MM
Machine Side Connection Size 0.3750 9.53MM
Flutes/Inserts 2
Flute Length 1.0000 25.40MM
Drill Length Type Stub
Cutter Dia 0.3750 9.53MM - 3/8
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
