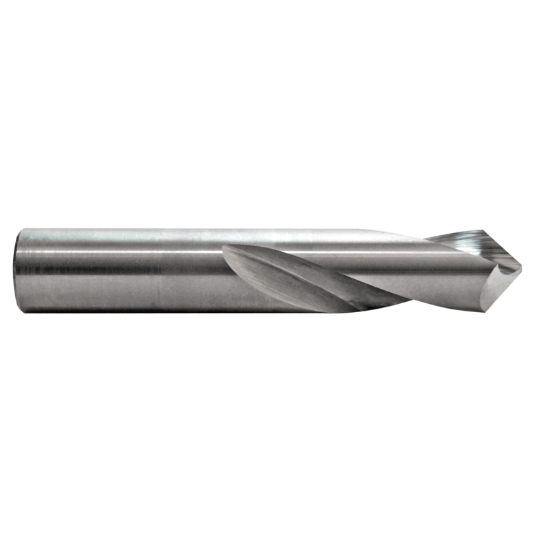

M.A. FORD 40431500 Spot Drill Solid Carbide 90° 0.315 Dia 0.315 Shank 2.519 OAL 2 Flute 1.024 Flute Length Carbide

ISO: 40431500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF40421
Delivery date: 3-5 days
$37.35

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Iowa
Application Spot Drilling
Made In USA Yes
Package Size 1
Dimensional Specifications
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.3150 8.00MM
Overall Len 2.5196 64.00MM
Drill Length Type Stub
Flute Length 1.0240 26.01MM
Shank/Pilot Dia 0.3150 8.00MM
Cutter Dia 0.3150 8.00MM
Flutes/Inserts 2
Included Angle 90°
Cut Dia Min 0.3150 8.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
