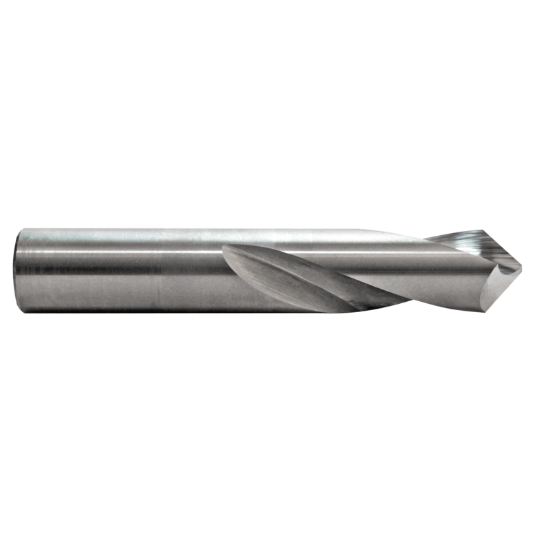

M.A. FORD 40425000 Spot Drill Solid Carbide 90° 0.250 Dia 0.250 Shank 2.000 OAL 2 Flute 1.000 Flute Length Carbide

ISO: 40425000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF40413
Delivery date: 3-5 days
$28.67

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Iowa
Made In USA Yes
Application Spot Drilling
Package Size 1
Dimensional Specifications
Flutes/Inserts 2
Included Angle 90°
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flute Length 1.0000 25.40MM
Drill Length Type Stub
Overall Len 2.0000 50.80MM
Cutter Dia 0.2500 6.35MM - 1/4 - E
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Cut Dia Min 0.2500 6.35MM - 1/4 - E
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
