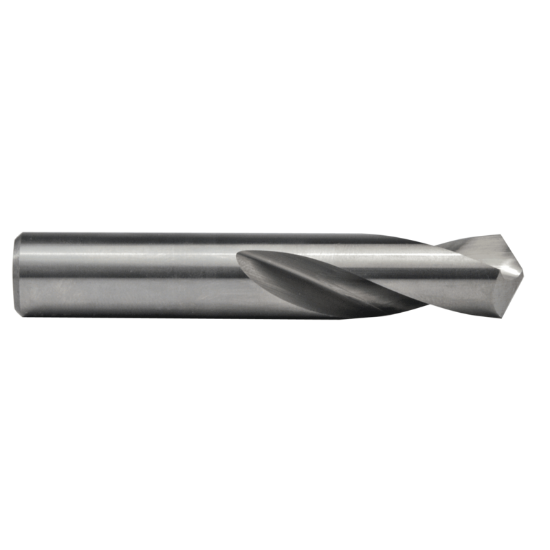

M.A. FORD 40331250 Spot Drill Solid Carbide 120° 0.312 Dia 0.312 Shank 2.500 OAL 2 Flute 1.000 Flute Length Carbide

ISO: 40331250

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF40317
Delivery date: 3-5 days
$37.35

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Spot Drilling
Shipping State Iowa
Package Size 1
Made In USA Yes
Dimensional Specifications
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Dia 0.3125 7.94MM - 5/16
Overall Len 2.5000 63.50MM
Drill Length Type Stub
Included Angle 120°
Cut Dia Min 0.3125 7.94MM - 5/16
Machine Side Connection Size 0.3125 7.94MM
Flutes/Inserts 2
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Flute Length 1.0000 25.40MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
