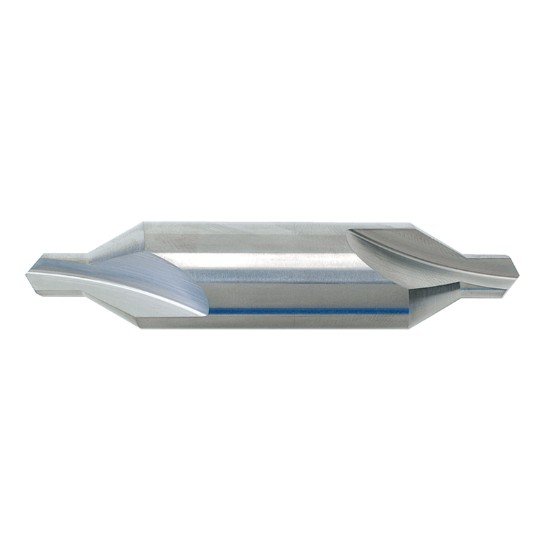

M.A. FORD 40215750 Center Drill Solid Carbide 60° 0.157 Dia 0.393 Shank 2.204 OAL 2 Flute Flute Length Carbide

ISO: 40215750

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF40257
Delivery date: 3-5 days
$63.80

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Center Drilling, Drilling
Made In USA Yes
Shipping State Iowa
Package Size 1
Dimensional Specifications
Drill Length Type Stub
Included Angle 60°
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.3937 10.00MM
Flutes/Inserts 2
Cutter Dia 0.1574 4.00MM
Cut Dia Min 0.1574 4.00MM
Shank/Pilot Dia 0.3937 10.00MM
Overall Len 2.2047 56.00MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
