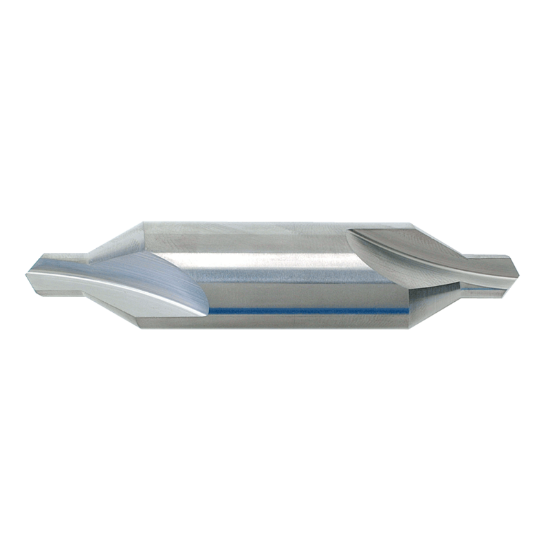

M.A. FORD 40212400 Center Drill Solid Carbide 60° 0.124 Dia 0.315 Shank 1.968 OAL 2 Flute Flute Length Carbide

ISO: 40212400

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF40249
Delivery date: 3-5 days
$47.12

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Shipping State Iowa
Application Drilling, Center Drilling
Package Size 1
Dimensional Specifications
Overall Len 1.9680 49.99MM
Shank/Pilot Dia 0.3150 8.00MM
Cut Dia Min 0.1240 3.15MM
Cutter Dia 0.1240 3.15MM
Flutes/Inserts 2
Drill Length Type Stub
Included Angle 60°
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.3150 8.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
