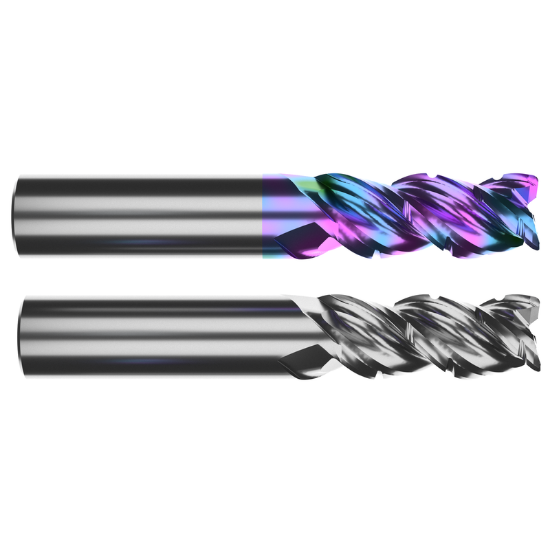

M.A. FORD 33475030R.030GP DIA 3/4 SH 0.7500 LOC 3.2500 OAL 6.00 End Mill Carbide Gem Plus Single End Corner Radius 0.0300 0.76MM TuffCut® XR-AL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF33443
Delivery date: 3-5 days
$338.33

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Iowa
Performance Rating High Performance
Application Side Milling, Face Milling
Made In USA Yes
Coating Gem Plus
Dimensional Specifications
Dimension Description 0.750 x 0.750 x 3.250 x 6.000
Length Of Cut 3.2500 82.55MM
Length Type Long
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Helix Angle 45°
Flutes/Inserts 3
Overall Len 6.0000 152.40MM
Corner Radius 0.0300 0.76MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
End Of Tool Shape Corner Radius
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finish Chip Break
Inch/Metric Inch
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
