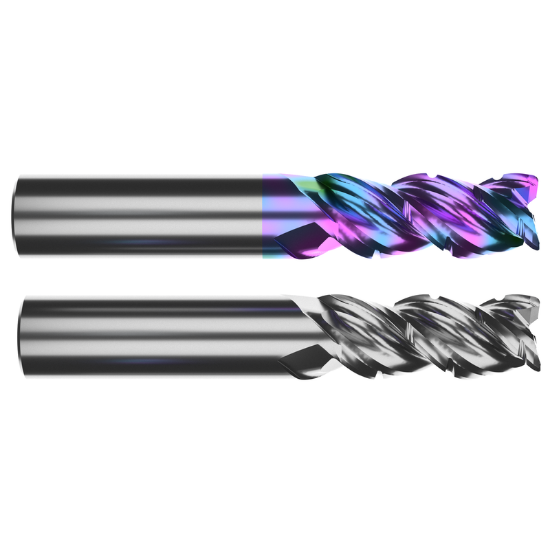

M.A. FORD 334625010R.030GP DIA 5/8 SH 0.6250 LOC 1.2500 OAL 3.50 End Mill Carbide Gem Plus Single End Corner Radius 0.0300 0.76MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF33430
Delivery date: 3-5 days
$153.61

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Made In USA Yes
Package Size 1
Performance Rating General Performance
Shipping State Iowa
Coating Gem Plus
Dimensional Specifications
Cutter Dia 0.6250 15.88MM - 5/8
Corner Radius 0.0300 0.76MM
Machine Side Connection Size 0.6250 15.88MM
Single/Double End Single End
Dimension Description 0.625 x 0.625 x 1.250 x 3.500
Cut Rating Aluminum, Graphite, Plastic
Overall Len 3.5000 88.90MM
Cutter Style Carbide Finish Chip Break
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 3
Length Type Standard
Helix Angle 45°
Length Of Cut 1.2500 31.75MM
End Of Tool Shape Corner Radius
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
