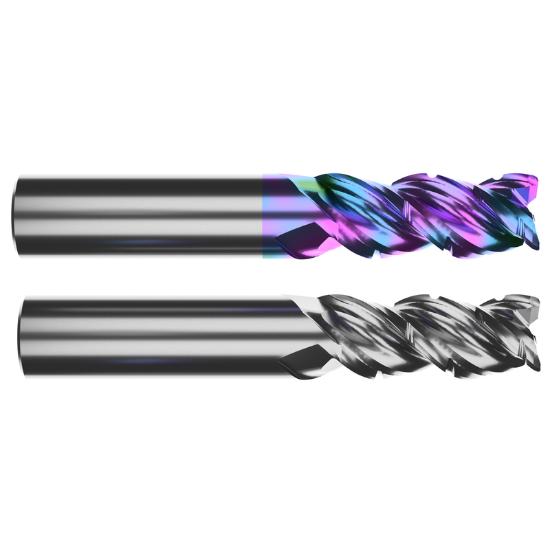

M.A. FORD 33450010R.030GP DIA 1/2 SH 0.50 LOC 1.00 OAL 3.00 End Mill Carbide Gem Plus Single End Corner Radius 0.0300 0.76MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF33419
Delivery date: 3-5 days
$91.48

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Iowa
Coating Gem Plus
Application Face Milling, Side Milling
Package Size 1
Made In USA Yes
Performance Rating General Performance
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 1.0000 25.40MM
Cutter Style Carbide Finish Chip Break
Inch/Metric Inch
End Of Tool Shape Corner Radius
Dimension Description 0.500 x 0.500 x 1.000 x 3.000
Helix Angle 45°
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Corner Radius 0.0300 0.76MM
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Overall Len 3.0000 76.20MM
Flutes/Inserts 3
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
