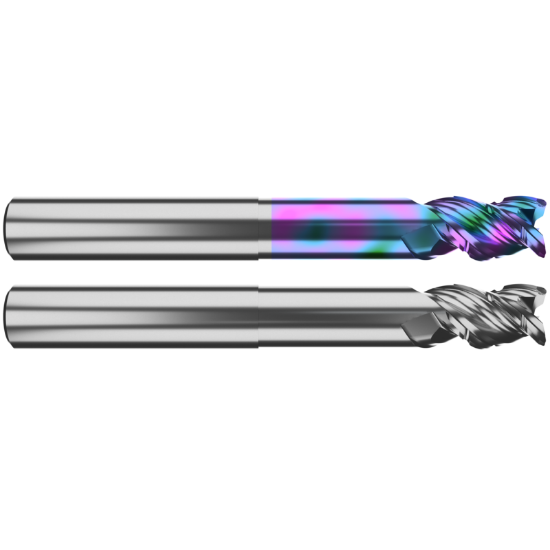

M.A. FORD 3345000N4R.030GP DIA 1/2 SH 0.50 LOC 0.6250 OAL 4.00 End Mill Carbide Gem Plus Single End Corner Radius 0.0300 0.76MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF33428
Delivery date: 3-5 days
$119.68

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Side Milling, Face Milling
Shipping State Iowa
Coating Gem Plus
Made In USA Yes
Performance Rating General Performance
Dimensional Specifications
Dimension Description 0.500 x 0.500 x 0.625 x 4.000
Length Of Cut 0.6250 15.88MM
Overall Len 4.0000 101.60MM
Cutter Dia 0.5000 12.70MM - 1/2
Helix Angle 45°
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard / With Neck
Flutes/Inserts 3
Neck Length 2.1250 53.98MM
Machine Side Connection Type Cylindrical
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Cutter Style Carbide Finish Chip Break
Inch/Metric Inch
Corner Radius 0.0300 0.76MM
Machine Side Connection Size 0.5000 12.70MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
