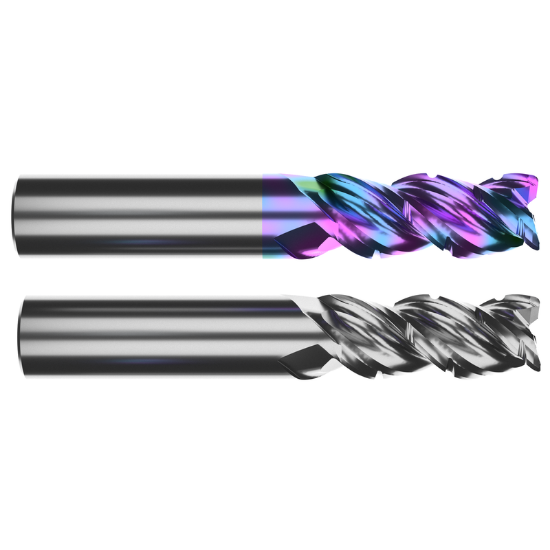

M.A. FORD 33425010R.020GP DIA 1/4 SH 0.2500 LOC 0.7500 OAL 2.50 End Mill Carbide Gem Plus Single End Corner Radius 0.0200 0.51MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF33404
Delivery date: 3-5 days
$53.76

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Made In USA Yes
Package Size 1
Performance Rating General Performance
Shipping State Iowa
Coating Gem Plus
Dimensional Specifications
Dimension Description 0.250 x 0.250 x 0.750 x 2.500
Corner Radius 0.0200 0.51MM
Overall Len 2.5000 63.50MM
Single/Double End Single End
Flutes/Inserts 3
Cutter Dia 0.2500 6.35MM - 1/4 - E
Helix Angle 45°
Length Of Cut 0.7500 19.05MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
End Of Tool Shape Corner Radius
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Cutter Style Carbide Finish Chip Break
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
