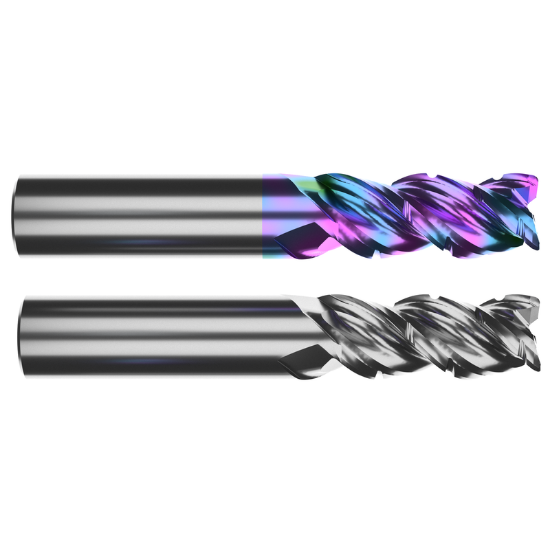

M.A. FORD 33425000R.020GP DIA 1/4 SH 0.2500 LOC 0.50 OAL 2.00 End Mill Carbide Gem Plus Single End Corner Radius 0.0200 0.51MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF33400
Delivery date: 3-5 days
$47.12

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Package Size 1
Coating Gem Plus
Made In USA Yes
Shipping State Iowa
Performance Rating General Performance
Dimensional Specifications
Single/Double End Single End
Overall Len 2.0000 50.80MM
Helix Angle 45°
Length Of Cut 0.5000 12.70MM
Dimension Description 0.250 x 0.250 x 0.500 x 2.000
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
End Of Tool Shape Corner Radius
Corner Radius 0.0200 0.51MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Inch/Metric Inch
Cutter Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 3
Cutter Style Carbide Finish Chip Break
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
