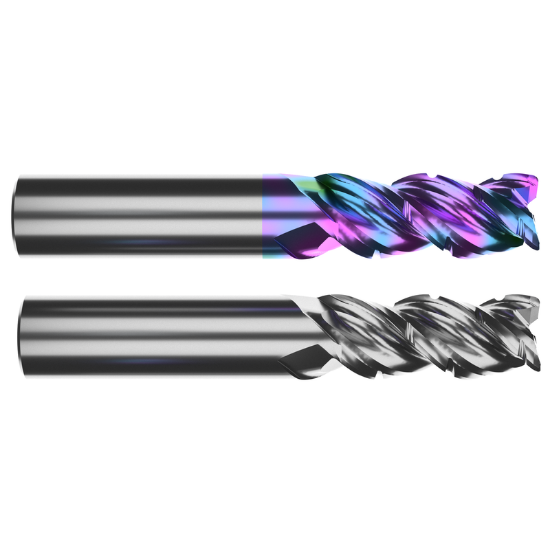

M.A. FORD 33410000R.030GP DIA 1 SH 1.00 LOC 1.2500 OAL 6.00 End Mill Standard Flute High Helix Carbide Gem Plus Single End Corner Radius 0.0300 0.76MM TuffCut® XR-AL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF33445
Delivery date: 3-5 days
$381.84

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Side Milling, Profile Milling, Slot Milling, Face Milling, Copy Milling
Made In USA Yes
Shipping State Iowa
Coating Gem Plus
Package Size 1
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Dimension Description 1.000 x 1.000 x 1.250 x 6.000
Overall Len 6.0000 152.40MM
Helix Angle 45°
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cutter Dia 1.0000 25.40MM
Length Type Long
Length Of Cut 1.2500 31.75MM
End Of Tool Shape Corner Radius
Corner Radius 0.0300 0.76MM
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
