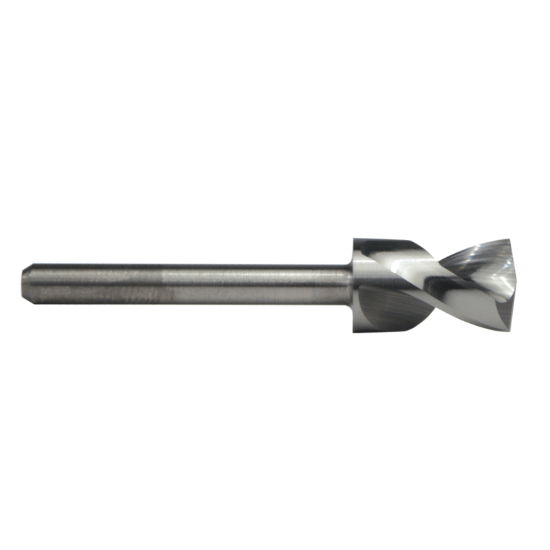

M.A. FORD 30619900 Circuit Board Solid Carbide 165° 0.199 Dia 0.125 Shank 1.500 OAL 2 Flute 0.480 Flute Length Carbide

ISO: 30619900

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF36125
Delivery date: 3-5 days
$17.15

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Circuit Board Drilling, Drilling
Shipping State Iowa
Made In USA Yes
Dimensional Specifications
Flutes/Inserts 2
Drill Length Type Stub
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Flute Length 0.4800 12.19MM
Overall Len 1.5000 38.10MM
Included Angle 165°
Cut Dia Min 0.1990 5.05MM - #8
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Cutter Dia 0.1990 5.05MM - #8
Machine Side Connection Size 0.1250 3.18MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
