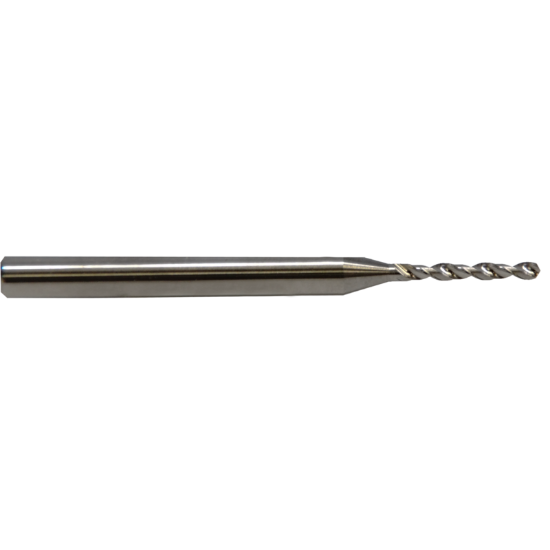

M.A. FORD 30207870 Circuit Board Solid Carbide 130° 0.078 Dia 0.125 Shank 1.496 OAL 2 Flute 0.480 Flute Length Carbide

ISO: 30207870

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF32409
Delivery date: 3-5 days
$4.96

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Iowa
Application Circuit Board Drilling, Drilling
Made In USA Yes
Dimensional Specifications
Cut Dia Min 0.0787 2.00MM
Flutes/Inserts 2
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Overall Len 1.4960 38.00MM
Flute Length 0.4800 12.19MM
Drill Length Type Stub
Machine Side Connection Type Cylindrical
Included Angle 130°
Machine Side Connection Size 0.1250 3.18MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Cutter Dia 0.0787 2.00MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
