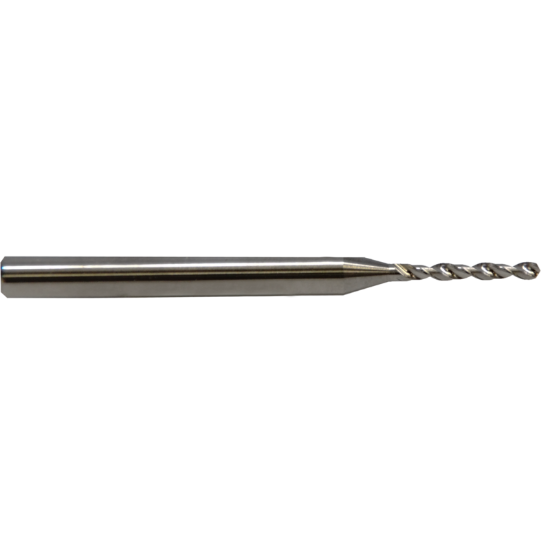

M.A. FORD 30204520 Circuit Board Solid Carbide 130° 0.045 Dia 0.125 Shank 1.496 OAL 2 Flute 0.400 Flute Length Carbide

ISO: 30204520

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF32285
Delivery date: 3-5 days
$4.96

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Circuit Board Drilling
Made In USA Yes
Package Size 1
Shipping State Iowa
Dimensional Specifications
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Included Angle 130°
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Dia 0.0453 1.15MM
Flute Length 0.4000 10.16MM
Drill Length Type Stub
Cut Dia Min 0.0453 1.15MM
Flutes/Inserts 2
Overall Len 1.4960 38.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
