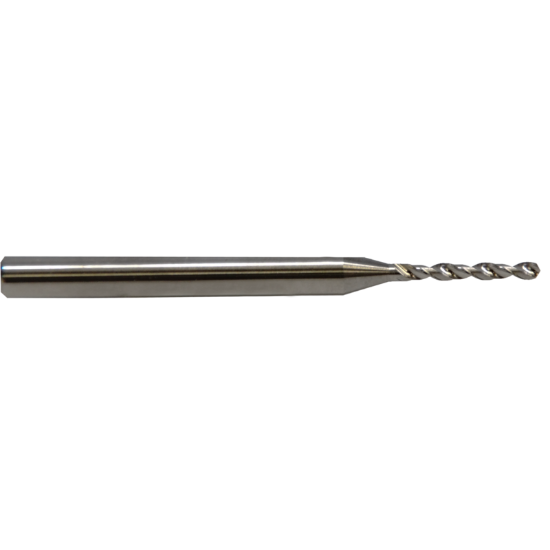

M.A. FORD 30202801F Circuit Board Solid Carbide 130° 0.028 Dia 0.125 Shank 1.500 OAL 2 Flute 0.320 Flute Length Carbide Fordlube

ISO: 30202801F

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF77988
Delivery date: 3-5 days
$9.47

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Fordlube Titanium DiBoride (TiB2) is a unique coating with a low aluminum affinity, smooth surface finish and high hardness.

Products specifications
Attribute name Attribute value
General Product Information
Coating Fordlube
Application Drilling, Circuit Board Drilling
Package Size 1
Shipping State Iowa
Made In USA Yes
Dimensional Specifications
Cut Dia Min 0.0280 0.71MM - #70
Flutes/Inserts 2
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 130°
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Cutter Dia 0.0280 0.71MM - #70
Overall Len 1.5000 38.10MM
Flute Length 0.3200 8.13MM
Drill Length Type Stub
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
