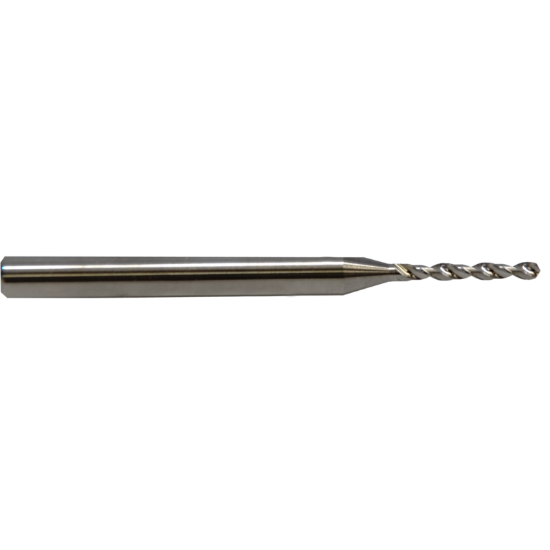

M.A. FORD 30200390C Circuit Board Solid Carbide 130° 0.003 Dia 0.125 Shank 1.500 OAL 2 Flute 0.065 Flute Length Carbide

ISO: 30200390C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF76033
Delivery date: 3-5 days
$59.16

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Circuit Board Drilling, Drilling
Shipping State Iowa
Made In USA Yes
Dimensional Specifications
Flutes/Inserts 2
Drill Length Type Stub
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Cutter Dia 0.0039 0.10MM - #102
Overall Len 1.5000 38.10MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 130°
Cut Dia Min 0.0039 0.10MM - #102
Flute Length 0.0650 1.65MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
