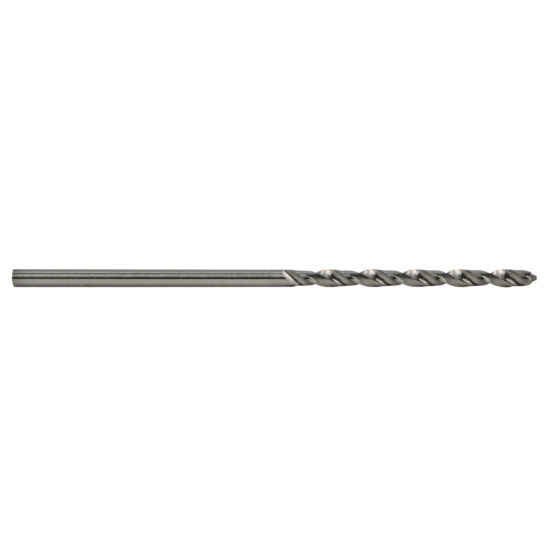

M.A. FORD 30012200 Carbide Drill Solid Carbide 118° 0.122 Dia 0.122 Shank 1.496 OAL 2 Flute 0.630 Flute Length Carbide

ISO: 30012200

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF30425
Delivery date: 3-5 days
$12.88

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling Flood Coolant, Dilling
Package Size 1
Shipping State Iowa
Made In USA Yes
Dimensional Specifications
Cut Dia Min 0.1220 3.10MM
Machine Side Connection Size 0.1220 3.10MM
Dia Deep 5.0XD
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1220 3.10MM
Included Angle 118°
Overall Len 1.4961 38.00MM
Cutter Dia 0.1220 3.10MM
Flute Length 0.6300 16.00MM
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
