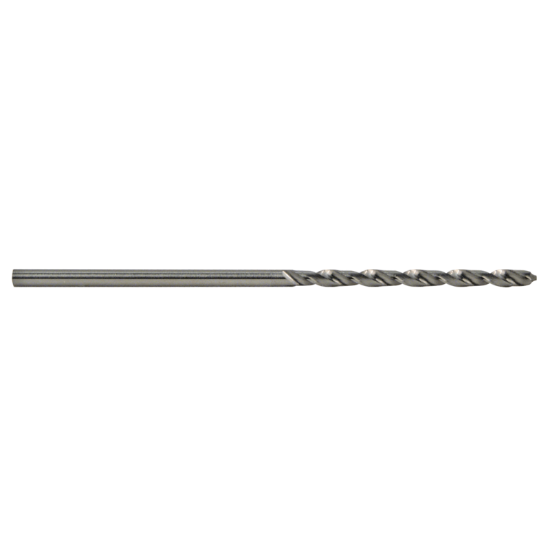

M.A. FORD 30007480 Carbide Drill Solid Carbide 118° 0.074 Dia 0.074 Shank 1.496 OAL 2 Flute 0.630 Flute Length Carbide

ISO: 30007480

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF30257
Delivery date: 3-5 days
$8.15

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Drilling Flood Coolant, Dilling
Made In USA Yes
Shipping State Iowa
Dimensional Specifications
Overall Len 1.4961 38.00MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cut Dia Min 0.0748 1.90MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.0748 1.90MM
Included Angle 118°
Flutes/Inserts 2
Dia Deep 5.0XD
Flute Length 0.6300 16.00MM
Cutter Dia 0.0748 1.90MM
Machine Side Connection Size 0.0748 1.90MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
