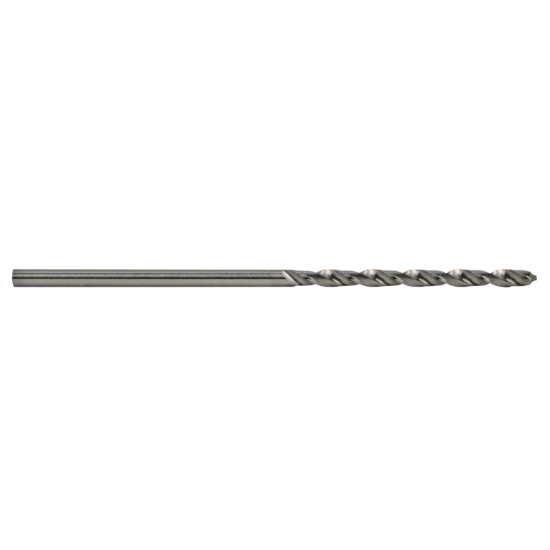

M.A. FORD 30002100 Carbide Drill Solid Carbide 118° 0.021 Dia 0.021 Shank 1.500 OAL 2 Flute 0.375 Flute Length Carbide

ISO: 30002100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF30029
Delivery date: 3-5 days
$11.04

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Drilling Flood Coolant, Dilling
Package Size 1
Shipping State Iowa
Dimensional Specifications
Cut Dia Min 0.0210 0.53MM - #75
Overall Len 1.5000 38.10MM
Dia Deep 5.0XD
Shank/Pilot Dia 0.0210 0.53MM - #75
Flute Length 0.3750 9.53MM
Machine Side Connection Size 0.0210 0.53MM
Flutes/Inserts 2
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 118°
Cutter Dia 0.0210 0.53MM - #75
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
