  • M.A. FORD 2XDSR1094T Carbide Drill Solid Carbide 140° - 142° 0.109 Dia 0.109 Shank 2.250 OAL 2 Flute 1.250 Flute Length Carbide TiN

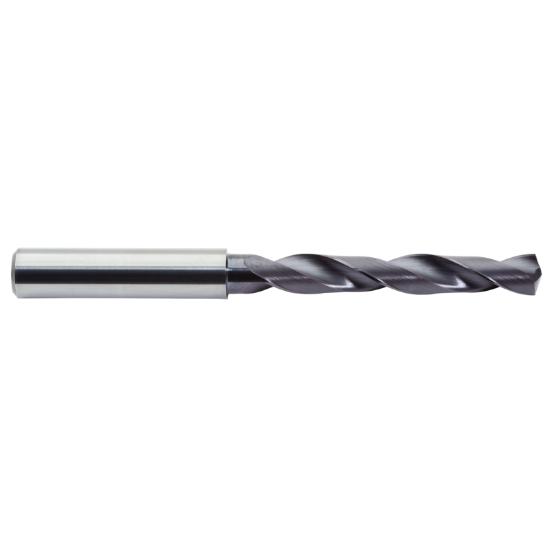

Picture of M.A. FORD 2XDSR1094T Carbide Drill Solid Carbide 140° - 142° 0.109 Dia 0.109 Shank 2.250 OAL 2 Flute 1.250 Flute Length Carbide TiN

M.A. FORD 2XDSR1094T Carbide Drill Solid Carbide 140° - 142° 0.109 Dia 0.109 Shank 2.250 OAL 2 Flute 1.250 Flute Length Carbide TiN

ISO: 2XDSR1094T

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF75975
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Dilling, Drilling Flood Coolant
Shipping State Iowa
Coating TiN
Package Size 1
Made In USA Yes
Dimensional Specifications
Machine Side Connection Size 0.1094 2.78MM
Cut Rating <53HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Cutter Dia 0.1094 2.78MM - 7/64
Tool Material Carbide
Included Angle 140° - 142°
Overall Len 2.2500 57.15MM
Flutes/Inserts 2
Cut Dia Min 0.1094 2.78MM - 7/64
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1094 2.78MM - 7/64
Dia Deep 5.0XD
Flute Length 1.2500 31.75MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Medical Yes
