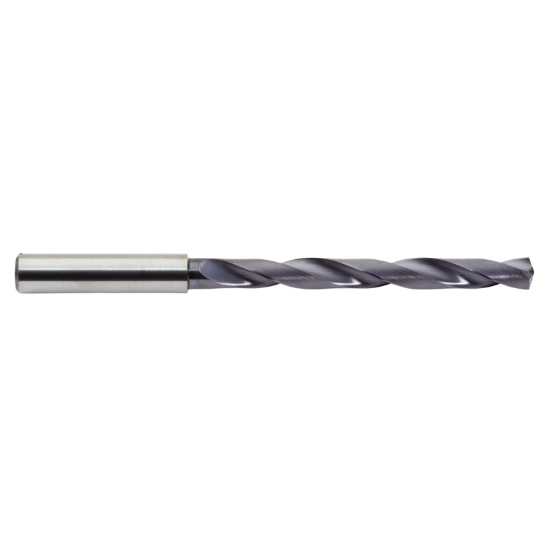

M.A. FORD 2XDCL2362A Deep Hole Coolant Thru Carbide 140° - 142° 0.236 Dia 0.236 Shank 3.937 OAL 2 Flute 2.008 Flute Length Carbide AlTiN

ISO: 2XDCL2362A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF02898
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling Thru Coolant, Drilling Deep Hole, Drilling
Shipping State Iowa
Made In USA Yes
Package Size 1
Coating AlTiN
Dimensional Specifications
Cut Rating <53HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Machine Side Connection Size 0.2362 6.00MM
Overall Len 3.9370 100.00MM
Dia Deep 7.0XD
Cut Dia Min 0.2362 6.00MM
Flutes/Inserts 2
Flute Length 2.0080 51.00MM
Cutter Dia 0.2362 6.00MM
Included Angle 140° - 142°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Medical Yes
