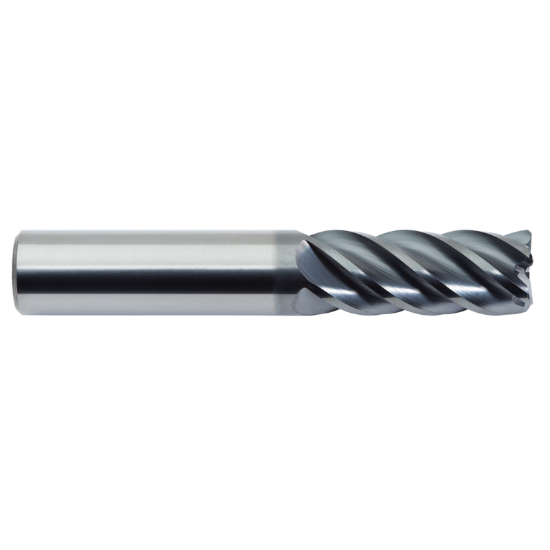

M.A. FORD 27875068B DIA 3/4 SH 0.7500 LOC 4.1250 OAL 7.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius 0.1200 3.05MM TuffCut® XT

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF97506
Delivery date: 3-5 days
$380.57

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Slot Milling, Face Milling, Profile Milling, Copy Milling
Made In USA Yes
Performance Rating High Performance
Package Size 1
Shipping State Iowa
Coating AlTiN
Dimensional Specifications
Dimension Description 0.750 x 0.750 x 4.125 x 7.000
Length Of Cut 4.1250 104.78MM
Cutter Style Carbide Bull Nose Finisher
End Of Tool Shape Corner Radius
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Overall Len 7.0000 177.80MM
Length Type Long
Helix Angle 40°
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Corner Radius 0.1200 3.05MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
Mold Yes
