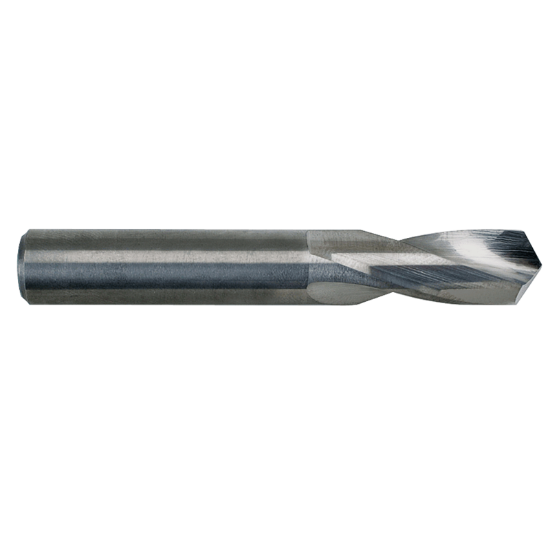

M.A. FORD 22645670 Carbide Drill Solid Carbide 118° 0.456 Dia 0.456 Shank 3.740 OAL 2 Flute 1.850 Flute Length Carbide

ISO: 22645670

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF26668
Delivery date: 3-5 days
$85.13

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Dilling, Drilling Flood Coolant
Shipping State Iowa
Package Size 1
Made In USA Yes
Dimensional Specifications
Cutter Dia 0.4567 11.60MM
Machine Side Connection Size 0.4567 11.60MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.4567 11.60MM
Flute Length 1.8500 46.99MM
Included Angle 118°
Overall Len 3.7400 95.00MM
Flutes/Inserts 2
Dia Deep 3.0XD
Cut Dia Min 0.4567 11.60MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
