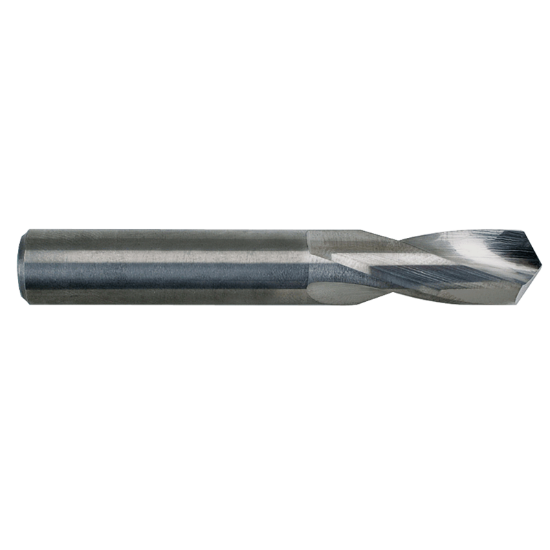

M.A. FORD 22642520 Carbide Drill Solid Carbide 118° 0.425 Dia 0.425 Shank 3.740 OAL 2 Flute 1.850 Flute Length Carbide

ISO: 22642520

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF26638
Delivery date: 3-5 days
$72.23

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Dilling, Drilling Flood Coolant
Shipping State Iowa
Made In USA Yes
Package Size 1
Dimensional Specifications
Flutes/Inserts 2
Machine Side Connection Size 0.4252 10.80MM
Shank/Pilot Dia 0.4252 10.80MM
Included Angle 118°
Cut Dia Min 0.4252 10.80MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.4252 10.80MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Dia Deep 3.0XD
Flute Length 1.8500 46.99MM
Overall Len 3.7400 95.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
