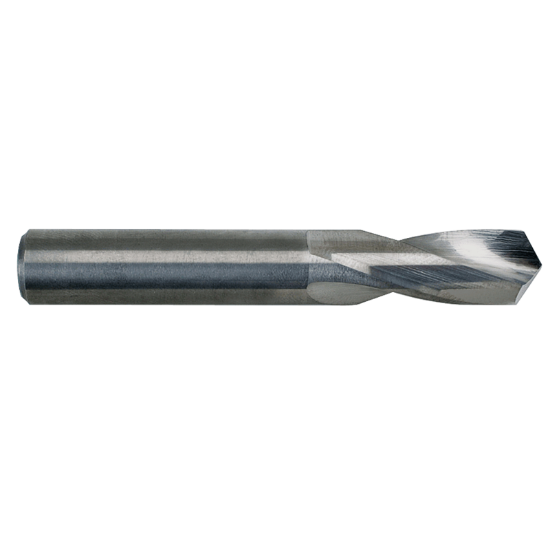

M.A. FORD 22642120 Carbide Drill Solid Carbide 118° 0.421 Dia 0.421 Shank 3.740 OAL 2 Flute 1.850 Flute Length Carbide

ISO: 22642120

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF26632
Delivery date: 3-5 days
$71.13

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Dilling, Drilling Flood Coolant
Shipping State Iowa
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.4213 10.70MM
Dia Deep 3.0XD
Flute Length 1.8500 46.99MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 118°
Overall Len 3.7400 95.00MM
Flutes/Inserts 2
Cutter Dia 0.4213 10.70MM
Machine Side Connection Size 0.4213 10.70MM
Cut Dia Min 0.4213 10.70MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
