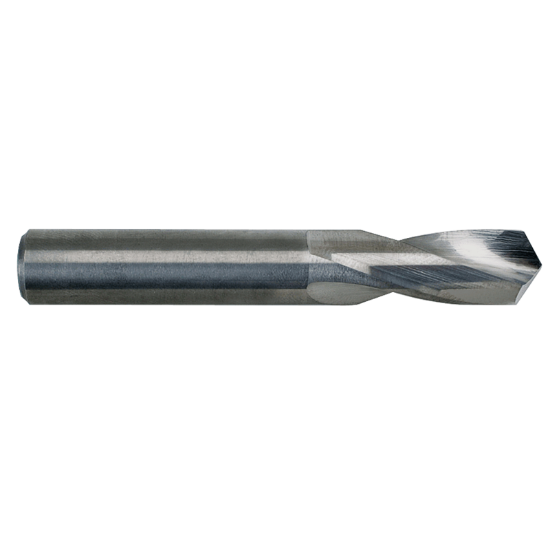

M.A. FORD 22641340 Carbide Drill Solid Carbide 118° 0.413 Dia 0.413 Shank 3.503 OAL 2 Flute 1.693 Flute Length Carbide

ISO: 22641340

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF26626
Delivery date: 3-5 days
$66.63

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling Flood Coolant, Dilling
Package Size 1
Made In USA Yes
Shipping State Iowa
Dimensional Specifications
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.4133 10.50MM - Z
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.4134 10.50MM
Overall Len 3.5039 89.00MM
Dia Deep 3.0XD
Included Angle 118°
Flutes/Inserts 2
Flute Length 1.6930 43.00MM
Cut Dia Min 0.4133 10.50MM - Z
Shank/Pilot Dia 0.4134 10.50MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
