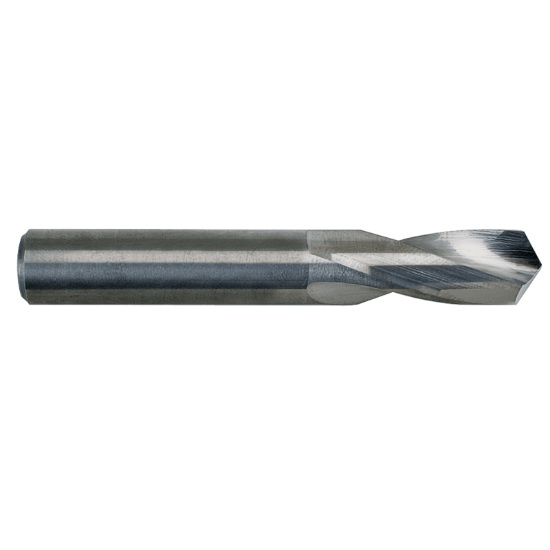

M.A. FORD 22639760 Carbide Drill Solid Carbide 118° 0.397 Dia 0.397 Shank 3.503 OAL 2 Flute 1.693 Flute Length Carbide

ISO: 22639760

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF26605
Delivery date: 3-5 days
$63.32

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling Flood Coolant, Dilling
Package Size 1
Shipping State Iowa
Made In USA Yes
Dimensional Specifications
Cut Dia Min 0.3976 10.10MM
Machine Side Connection Size 0.3976 10.10MM
Shank/Pilot Dia 0.3976 10.10MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 3.5039 89.00MM
Included Angle 118°
Cutter Dia 0.3976 10.10MM
Dia Deep 3.0XD
Flute Length 1.6930 43.00MM
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
