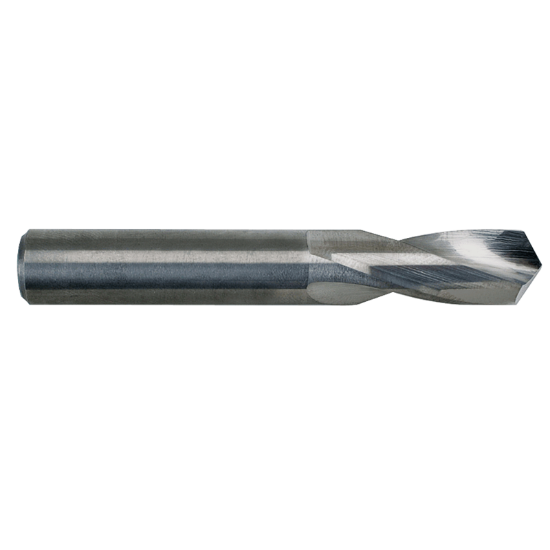

M.A. FORD 22635430 Carbide Drill Solid Carbide 118° 0.354 Dia 0.354 Shank 3.307 OAL 2 Flute 1.575 Flute Length Carbide

ISO: 22635430

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF26548
Delivery date: 3-5 days
$49.81

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Dilling, Drilling Flood Coolant
Shipping State Iowa
Package Size 1
Dimensional Specifications
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Included Angle 118°
Cutter Dia 0.3543 9.00MM
Flute Length 1.5750 40.01MM
Machine Side Connection Size 0.3543 9.00MM
Cut Dia Min 0.3543 9.00MM
Shank/Pilot Dia 0.3543 9.00MM
Overall Len 3.3071 84.00MM
Flutes/Inserts 2
Tool Material Carbide
Machine Side Connection Type Cylindrical
Dia Deep 3.0XD
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
