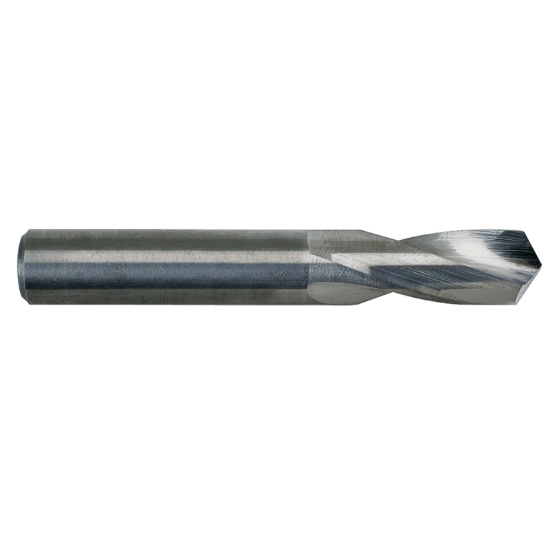

M.A. FORD 22635040 Carbide Drill Solid Carbide 118° 0.350 Dia 0.350 Shank 3.307 OAL 2 Flute 1.575 Flute Length Carbide

ISO: 22635040

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF26545
Delivery date: 3-5 days
$49.20

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Drilling Flood Coolant, Dilling
Shipping State Iowa
Made In USA Yes
Dimensional Specifications
Cutter Dia 0.3504 8.90MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 118°
Shank/Pilot Dia 0.3504 8.90MM
Overall Len 3.3071 84.00MM
Flutes/Inserts 2
Flute Length 1.5750 40.01MM
Machine Side Connection Size 0.3504 8.90MM
Cut Dia Min 0.3504 8.90MM
Dia Deep 3.0XD
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
