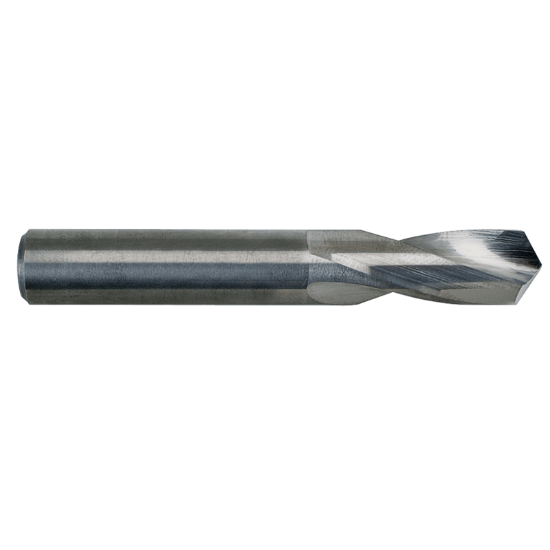

M.A. FORD 22632670 Carbide Drill Solid Carbide 118° 0.326 Dia 0.326 Shank 3.110 OAL 2 Flute 1.457 Flute Length Carbide

ISO: 22632670

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF26512
Delivery date: 3-5 days
$44.01

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Drilling Flood Coolant, Dilling
Shipping State Iowa
Package Size 1
Dimensional Specifications
Cutter Dia 0.3268 8.30MM
Flute Length 1.4570 37.01MM
Overall Len 3.1102 79.00MM
Flutes/Inserts 2
Cut Dia Min 0.3268 8.30MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.3268 8.30MM
Dia Deep 3.0XD
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Included Angle 118°
Shank/Pilot Dia 0.3268 8.30MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
