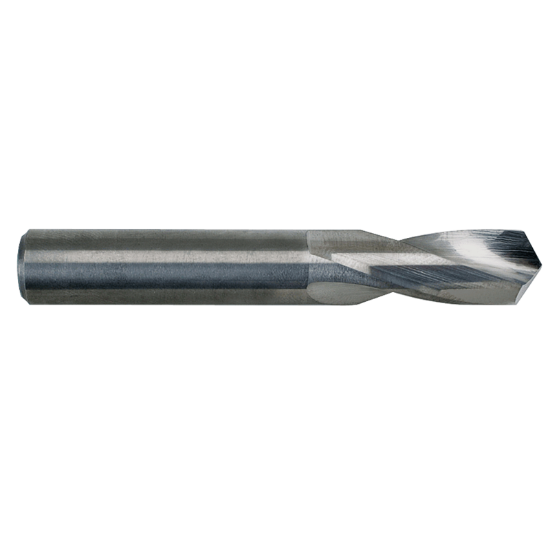

M.A. FORD 22618890 Carbide Drill Solid Carbide 118° 0.189 Dia 0.189 Shank 2.440 OAL 2 Flute 1.024 Flute Length Carbide

ISO: 22618890

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF26302
Delivery date: 3-5 days
$18.39

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling Flood Coolant, Dilling
Made In USA Yes
Shipping State Iowa
Package Size 1
Dimensional Specifications
Cut Dia Min 0.1890 4.80MM - #12
Flute Length 1.0240 26.01MM
Shank/Pilot Dia 0.1890 4.80MM - #12
Overall Len 2.4409 62.00MM
Dia Deep 3.0XD
Cutter Dia 0.1890 4.80MM - #12
Machine Side Connection Size 0.1890 4.80MM
Flutes/Inserts 2
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 118°
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
