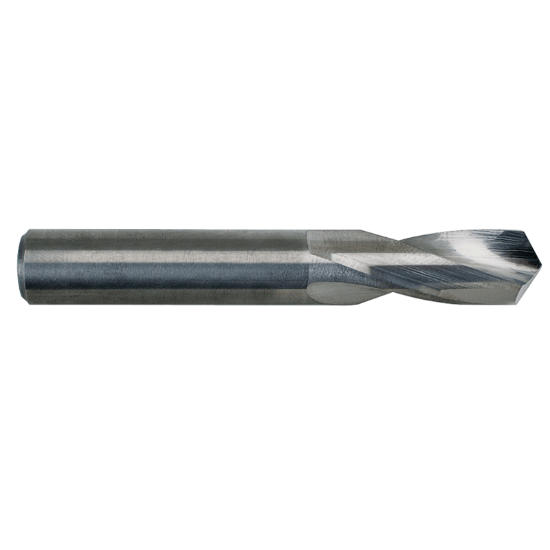

M.A. FORD 22609840 Carbide Drill Solid Carbide 118° 0.098 Dia 0.098 Shank 1.692 OAL 2 Flute 0.551 Flute Length Carbide

ISO: 22609840

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF26137
Delivery date: 3-5 days
$8.91

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 1
Application Dilling, Drilling Flood Coolant
Shipping State Iowa
Dimensional Specifications
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.0984 2.50MM
Cut Dia Min 0.0984 2.50MM
Tool Material Carbide
Overall Len 1.6929 43.00MM
Included Angle 118°
Machine Side Connection Size 0.0984 2.50MM
Shank/Pilot Dia 0.0984 2.50MM
Flutes/Inserts 2
Flute Length 0.5510 14.00MM
Machine Side Connection Type Cylindrical
Dia Deep 3.0XD
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
