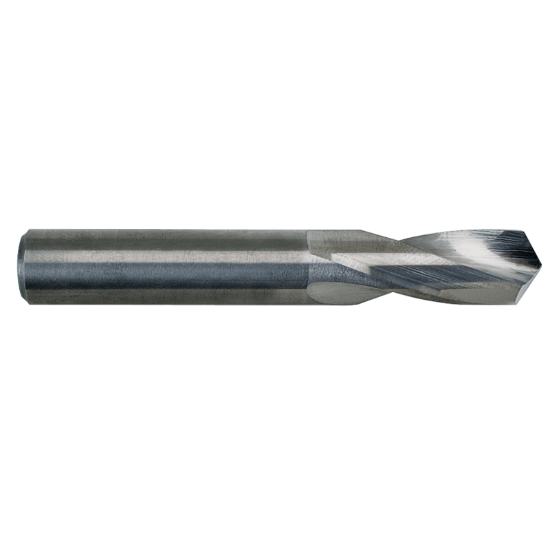

M.A. FORD 22607080 Carbide Drill Solid Carbide 118° 0.070 Dia 0.070 Shank 1.417 OAL 2 Flute 0.433 Flute Length Carbide

ISO: 22607080

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF26080
Delivery date: 3-5 days
$6.51

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling Flood Coolant, Dilling
Made In USA Yes
Package Size 1
Shipping State Iowa
Dimensional Specifications
Flute Length 0.4330 11.00MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.0709 1.80MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 118°
Shank/Pilot Dia 0.0709 1.80MM
Dia Deep 3.0XD
Overall Len 1.4173 36.00MM
Flutes/Inserts 2
Cut Dia Min 0.0709 1.80MM
Machine Side Connection Size 0.0709 1.80MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
