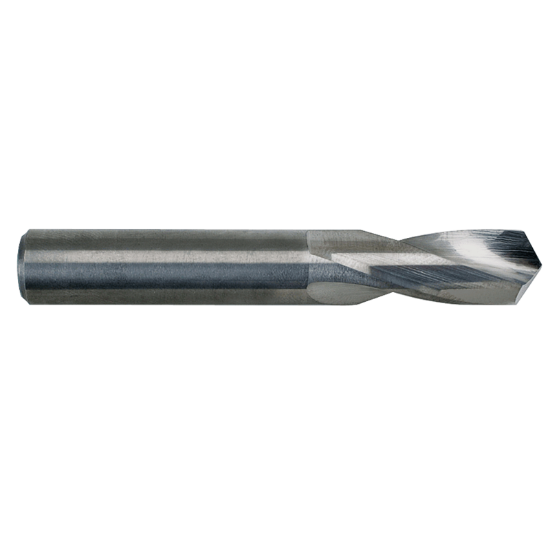

M.A. FORD 22606300 Carbide Drill Solid Carbide 118° 0.062 Dia 0.063 Shank 1.338 OAL 2 Flute 0.394 Flute Length Carbide

ISO: 22606300

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF26065
Delivery date: 3-5 days
$6.21

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling Flood Coolant, Dilling
Made In USA Yes
Shipping State Iowa
Package Size 1
Dimensional Specifications
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cut Dia Min 0.0629 1.60MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 1.3386 34.00MM
Dia Deep 3.0XD
Cutter Dia 0.0630 1.60MM
Flutes/Inserts 2
Flute Length 0.3940 10.01MM
Included Angle 118°
Machine Side Connection Size 0.0630 1.60MM
Shank/Pilot Dia 0.0629 1.60MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
