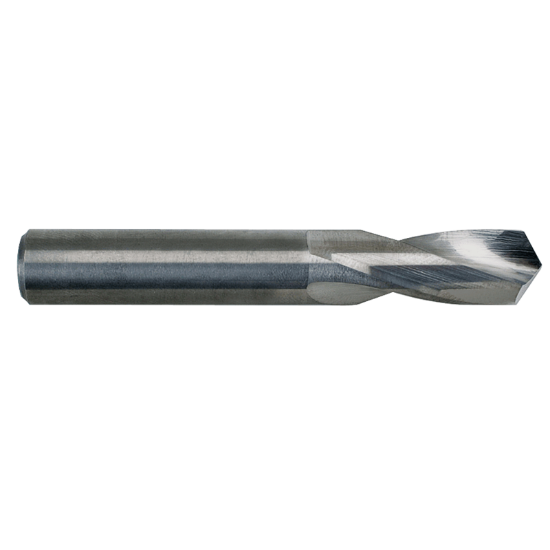

M.A. FORD 22603940 Carbide Drill Solid Carbide 118° 0.039 Dia 0.039 Shank 1.023 OAL 2 Flute 0.236 Flute Length Carbide

ISO: 22603940

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF26002
Delivery date: 3-5 days
$5.72

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 1
Application Dilling, Drilling Flood Coolant
Shipping State Iowa
Dimensional Specifications
Overall Len 1.0236 26.00MM
Cut Dia Min 0.0394 1.00MM
Flute Length 0.2360 5.99MM
Included Angle 118°
Flutes/Inserts 2
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.0394 1.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.0394 1.00MM
Shank/Pilot Dia 0.0394 1.00MM
Dia Deep 3.0XD
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
