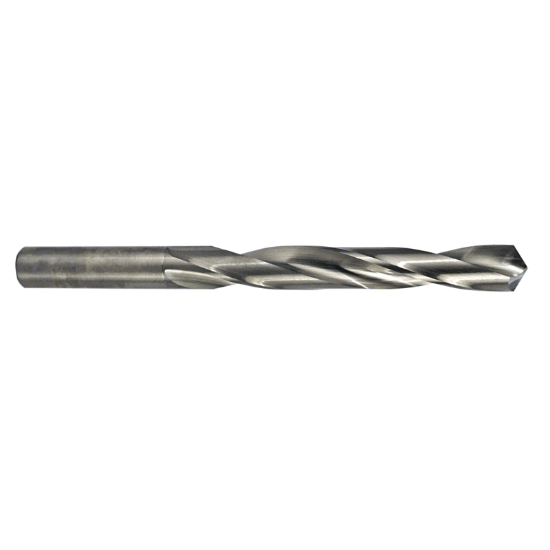

M.A. FORD 22442910 Carbide Drill Solid Carbide 118° 0.429 Dia 0.429 Shank 5.590 OAL 2 Flute 3.701 Flute Length Carbide

ISO: 22442910

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF24749
Delivery date: 3-5 days
$119.04

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 1
Application Dilling, Drilling Flood Coolant
Shipping State Iowa
Dimensional Specifications
Flute Length 3.7010 94.01MM
Cutter Dia 0.4291 10.90MM
Dia Deep 5.0XD
Cut Dia Min 0.4291 10.90MM
Flutes/Inserts 2
Machine Side Connection Size 0.4291 10.90MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 118°
Shank/Pilot Dia 0.4291 10.90MM
Overall Len 5.5906 142.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
